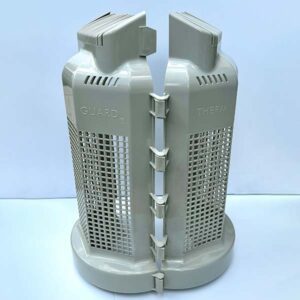

Therm-A-Guard© Wildlife Protector (Extra Large)

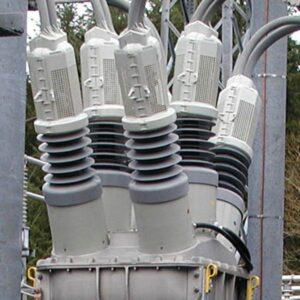

Our Model TGB-10517 is our largest guard and used in specialty applications where bushing diameters are considerably larger than normal distribution voltage equipment. Our extra-large guard is designed for equipment with a bushing skirt diameter of less than 10.5 inches; this would include large substation transformer bushings, large station potheads or any specialty equipment needing extra-large coverage. Generally, transmission voltage equipment is large enough in size, and the equipment is spaced far enough apart, preventing animal induced outage.

Actual height: 19.6″

Actual diameter: 11.3″

Maximum usable inside height: 17.”

Maximum bushing skirt diameter: 10.5″”

Exit lead cutout size: 6″

Price Per Unit: $34.50

#Guards Per Box: 3*

*Please note: all Therm-A-Guard® wildlife protectors are sold by the CASE ONLY. WE DO NOT BREAK down CASES to SELL INDIVIDUAL GUARDS.

SKU: TGB-10517 Category:

Additional Information:

  • 2 elongated latches and 4 hinges.
  • Support ribs added on the inside to keep rigid over a long period of time.
  • Flexible fingers at the bottom of the guard allow it to grip the first (top) bushing skirt securely while the top exit leads flex to allow the lead wire to easily exit the guard.
  • Hot stick handles allow for installation with hot sticks without de-energizing equipment.

Purchase Orders

Purchase orders are welcome! If you would rather place an order directly via purchase order please contact us for details on purchase order submission.  In addition, contact us for volume discounts on orders larger than 500 total guards combined.

Email all purchase orders to; our Terms are Net 30 Strict
