Therm-A-Guard© Wildlife Protector (Large)

$107.70$1,077.00

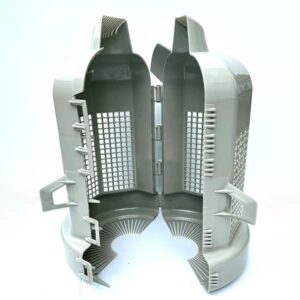

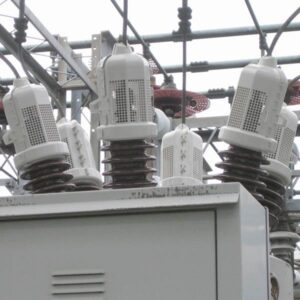

Our Model TGB-82512 is similar to our medium guard but is designed for larger bushing size applications and will accommodate larger top loaded exit leads. Our large guard is recommended for equipment with bushing skirt diameters of 8.25 inches or less. Many utilities use this size guard on substation transformers or larger substation circuit breakers.

Actual height: 13.9”

Actual diameter: 9.6”

Maximum usable inside height: 12.00″

Maximum bushing skirt diameter:8.25″

Exit lead cutout size: 3.75″

Price Per Unit: $17.95

#Guards Per Box: 6*

* Please note: all Therm-A-Guard® wildlife protectors are sold by the CASE ONLY. WE DO NOT BREAK down CASES to SELL INDIVIDUAL GUARDS.

Clear
SKU: TGB-82512 Category:

Additional Information:

  • 3 latches and 4 hinges.
  • Support ribs added on the inside to keep rigid over a long period of time.
  • Flexible fingers at the bottom of the guard allow it to grip the top bushing skirt securely while the top exit leads flex to allow the lead wire to easily exit the guard.
  • Hot stick handles allow for installation with hot sticks without de-energizing equipment.

Purchase Orders

Purchase orders are welcome! If you would rather place an order directly via purchase order please contact us for details on purchase order submission.  In addition, contact us for volume discounts on orders larger than 500 total guards combined.

Email all purchase orders to ThermaguardCo@aol.com; our Terms are Net 30 Strict
